Product Dimensions 10.56"h x 29.87"w x 11.44"d

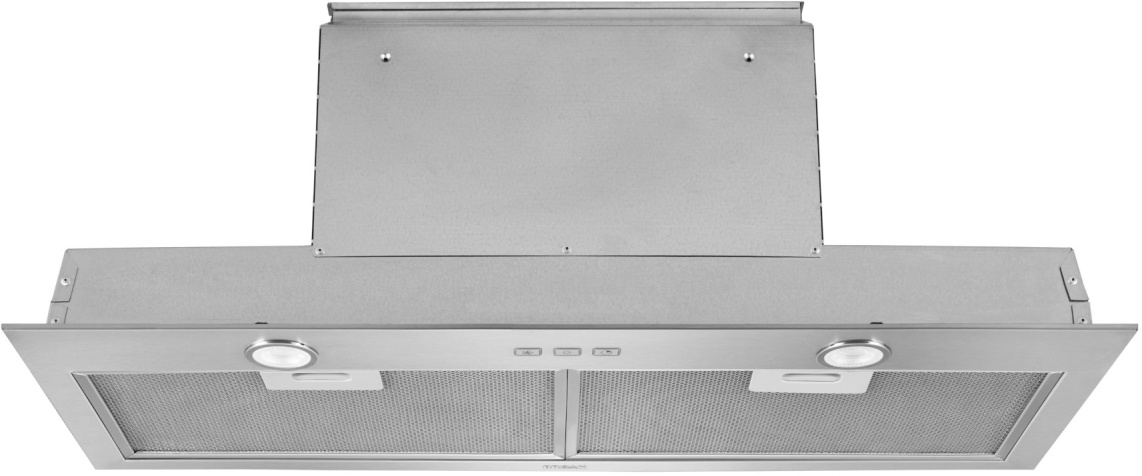

The BBN3 powerpack insert series is ideal for cabinet installations. The integrated one-piece design protects the full bottom of your cabinetry with a flush appearance and depth adjustability. Bright LED lighting enhances your cooking experience, while the 4-speed back-lit soft touch control makes operation easy.Read More
Powerful 650 Max Blower CFM operates at 0.5 sone at normal speed
Bright 2-level LED modules (included) enhance your cooking experience
4-Speed back-lit soft touch control for easy operation
EZ1 clips make it easy for single-person installation
Dishwasher-safe aluminum micro mesh filters feature quick-release latch for easy removal
10 minute delay off function keeps hood running after cooking to ensure smoke and odors have cleared the environment
Code Ready Technology adjusts CFM down to 300 or 400 to meet make-up air codes
ADA compliant, remote operation is possible using a standard UL approved wall switch (Requires ADA adapter kit, HAWRK5, sold separately)
Stainless liner extension included to accommodates up to 13” deep cabinets with optional extensions available to accommodate cabinets up to 15” deep
Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs
Works with optional universal make-up air dampers
General Specs | |
| Width (in.) | 29.87 |
| Height (in.) | 10.56 |
| Duct Size (in.) | 7" Round |
| Depth (in.) | 11.44 |
| Collection | BBN3 |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Manufacturer Warranty | 1 Year |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| ENERGY STAR Certified | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Maximum CFM | 650 |
| Bulb Type | LED |
| Sones Rating | 0.5 - 3.0 |
| Fan Speed Options | 4 |
| Width (cm) | 75.87 |
| Height (cm.) | 26.82 |
| Depth (cm.) | 29.06 |
| Voltage | 120 |
| Amp | 4.0 |
| Frequency | 60 |
| Range Hood Features | Ductless Capable, Filter Indicator, Heat Sensor |
| Noise Level (Sones) | Moderate - (Medium) |
| Ventilation Type | Convertible (Both) |
Overall Specifications | |
| Filter Type | Hybrid Baffle |
| Duct Direction | Horizontal/ Vertical |
| Capture Efficiency | 98.5 |
| Built-In Timer | No |
| Country of Origin | Mexico |
| Boost Mode | No |
| Switch Control Type | Infrared |
| UL Listed | Yes |
