Product Dimensions 14.1"h x 9"w x 3.9"d

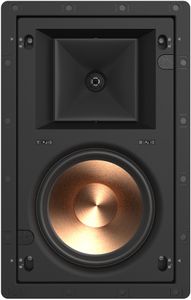

Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RW brings incredible acoustics with the signature Klipsch® sound. Featuring the SecureFit™ Installation System, the Klipsch® Professional Series Reference speakers are the ideal choice for custom home installation audio.Read More
6.5” Injection Molded Graphite (IMG) Woofer
1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
Exclusive, modular SecureFit™ Installation System
Bezel-Free square and round paintable magnetic grilles
Controlled Dispersion™ Technology
Magnetic paint shield
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.
Controlled Dispersion™ Technology allows for the tweeter to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.
A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
General Specs | |
| Product Weight (lbs.) | 7.2 |
| Color Finish Name | Black |
| RMS Power Handling (Watts) | 200 |
| Height (cm.) | 35.8 |
| Depth (cm.) | 9.91 |
| Width (cm) | 22.9 |
| Product Weight (kg) | 3.27 |
| Color | Black |
| Impedance | 8 ohms |
| Number of Speakers | 1 |
| Depth (in.) | 3.9 |
| Height (in.) | 14.1 |
| Width (in.) | 9 |
General | |
| Frequency Range | 63Hz - 23kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn |
| Low Frequency Driver | 6.5" (16.51cm) IMG Woofer |
| Sensitivity | 93 dB @ 2.83V / 1m |
| Coverage Angle | 90° x 90° |
| Power Handling | 50W RMS / 200W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.0” W x 14.1” H x 3.9” D (22.8cm W x 35.8cm H x 9.8cm D) |
| Mounting Depth | 3.78” (9.6cm) |
| Cutout Dimensions | 13” H X 8” W (33.0cm H X 20.3cm W) |
| Product Weight | 7.2lbs (3.25kg) |
| Included | Flat Magnetic Grille, Paint Shield |
| Installation Kit | IK-650-W II or IK-650-W (Sold Separately) |
| Fire Rated Enclosure | ME-650-W (Sold Separately) |
| Built From | 2017 |
