Product Dimensions 6.81"h x 31.13"w x 14.46"d

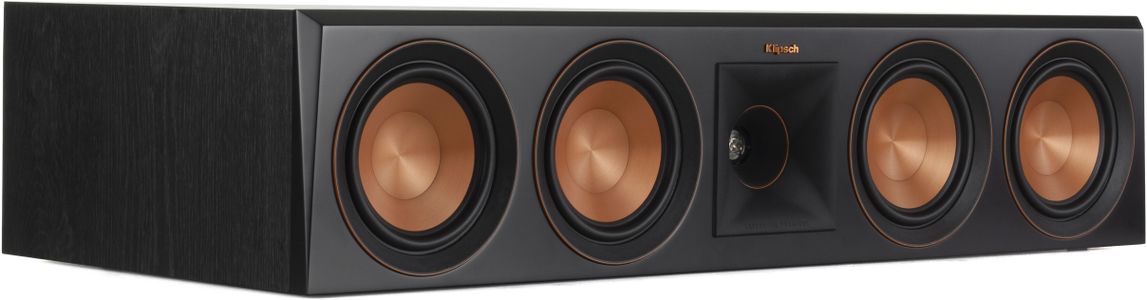

The Klipsch Reference Premiere RP-504CB center channel speaker brings movie dialogue and music lyrics to life. Four 5.25" Cerametallic™ woofers and a hybrid Tractrix® horn emit lifelike, front row sound.Read More
1” Titanium LTS Vented Tweeter with Hybrid Tractrix® Horn
Quad 5.25" Spun Copper Cerametallic™ Woofers
Bass-Reflex via Rear-Firing Tractrix® port
Premium Scratch Resistant Ebony and Walnut Finishes
Strong, Flexible Removable Magnetic Grille
Dimensions: 6.81” x 31.13” x 14.46”
Klipsch® proprietary Tractrix® horn-loaded technology ensures high-frequency energy of the RP-504CB center channel speaker is aimed directly at the listener and reduces unwanted, artificial reverb caused by indirect sound bouncing off walls - meaning you experience the most clear, detailed, lifelike sound possible.
Klipsch® Reference Premiere series speakers feature a compressed molded silicon face thats matted to the 90x90 Tractrix horn to reduces horn resonance for a smoother frequency response. Klipsch computer modeled phase plugs acts as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.
A vented tweeter design reduces standing waves behind the tweeter diaphragm for a smoother high frequency reproduction.
The titanium tweeter diaphragm's light weight yet rigid composition exceeds the performance of aluminum, polymer or silk tweeters.
Klipsch® award-winning Linear Travel Suspension technology leverages a piston motion of the titanium diaphragm that lowers distortion and delivers real-to-life sound.
A ceramic magnet housing provides premium performance, Klipsch® Reference Premiere tweeters set the standard in acoustic reproduction.
Klipsch® Proprietary Cerametallic™ woofers are the RP-504CB center channel speaker's signature statement for both sound and aesthetics. This extremely light, rigid materials holds its shape while being able to deliver lower frequencies with maximum efficiency.
Klipsch® Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.
Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.
The rear Tractrix port of the Reference Premiere center channel speakers is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.
The RP-504CB ebony and walnut finishes boast satin painted baffles with a scratch resistant design for an elegant audio solution to your home theater system.
Strong, flexible, removable magnetic grilles provide further options - for both protection and style.
General Specs | |
| Product Weight (lbs.) | 34 |
| Color Finish Name | Ebony |
| RMS Power Handling (Watts) | 600 |
| Height (cm.) | 17.3 |
| Depth (cm.) | 36.7 |
| Width (cm) | 79.1 |
| Product Weight (kg) | 15.42 |
| Color | Black |
| Impedance | 8 ohms |
| Depth (in.) | 14.46 |
| Height (in.) | 6.81 |
| Width (in.) | 31.13 |
General | |
| Frequency Response | 58-25kHz +/- 3dB |
| Sensitivity | 97dB @ 2.83V / 1m |
| Power Handling (Cont/Peak) | 150W/600W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 500Hz/1500Hz |
| High Frequency Driver | 1” Titanium LTS Vented Tweeter with Hybrid Cross-Section Tractrix® Horn |
| Low Frequency Driver | Quad 5.25” Cerametallic Cone Woofers |
| Enclosure Material | MDF |
| Enclosure Type | Bass Reflex via rear-firing Tractrix® Port |
| Inputs | Single Binding Posts |
| Finish | Ebony, Walnut, Piano Black |
| Accessories | Rubber Feet (4) |
| Built From | 2018 |
