Product Dimensions 12"h x 6"w x 2.4"d

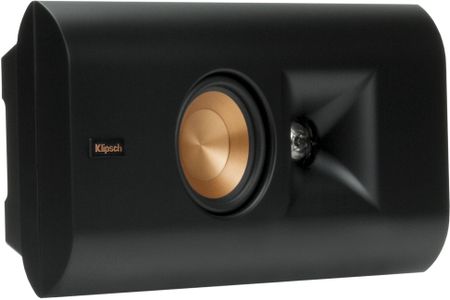

The Reference Premiere Designer On-Wall RP-140D brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. Featuring a 3.5” Cerametallic™ woofer and 1” Titanium Dome Linear Travel Suspension (LTS) tweeter, this on-wall speakers offers flexible placement for front LCR, or side/rear surrounds.Read More
Slim On-Wall Solution Matches Today's Ultra-Flat TV's
Reference Premiere Horn Loaded Acoustic Technology
Horizontal and Vertical Mounting Options
Single 1” Titanium Dome Linear Travel Suspension (LTS) tweeter
Single 3.5" Cerametallic™ Woofer
Dual 4-Way Keyholes for secure on-wall mounting
Magnetic Wrap-Around Grille
Included glass base for table-top mounting
Matte Black Painted Finish Blends Seamlessly into Today’s Modern Interiors
The Tractrix® horn geometry helps to improve high-frequency response and extension, while enhancing imaging and dynamics. It also focuses the high frequency sounds towards the listening area, for the cleanest, most natural sound possible.
The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.
Front grill attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.
Dual four-way keyholes allows for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.
General Specs | |
| Product Weight (lbs.) | 3.75 |
| Color Finish Name | Black |
| RMS Power Handling (Watts) | 50 |
| Height (cm.) | 30.5 |
| Depth (cm.) | 6.1 |
| Width (cm) | 15.2 |
| Product Weight (kg) | 1.7 |
| Color | Black |
| Impedance | 8 ohms |
| Speaker Type | On-Wall Speakers |
| Depth (in.) | 2.4 |
| Height (in.) | 12 |
| Width (in.) | 6 |
Construction | |
| Enclosure Type: | Bass Reflex |
| Tweeter Composition: | Titanium |
| Woofer Composition: | Cerametallic™ Cone |
Other | |
| Sold As: | Each |
Specifications | |
| Frequency Response | 69Hz-25kHz +/- 3dB |
| Sensitivity | 91dB @ 2.83V / 1m |
| Power Handling (Cont/Peak) | 50W / 200W |
| Nominal Impedance | 8 Ohms Compatible |
| Crossover Frequency | 2200Hz |
| High Frequency Drivers | 1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn |
| Low Frequency Drivers | 3.5” (8.89 cm) Cerametallic Cone Woofers |
| Enclosure Material | ABS |
| Enclosure Type | Bass Reflex |
| Inputs | Single Binding Posts |
| Height | 12" (30.48 cm) |
| Width | 6" (15.24 cm) |
| Depth | 2.4" (6.10 cm) |
| Weight | 3.75 lbs (1.7 kg) |
| Finish | Matte Black Paint |
| Built From | 2017 |
