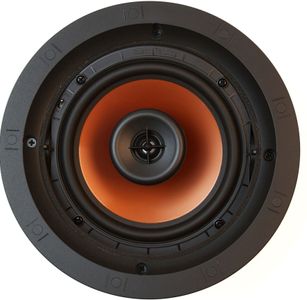

Klipsch® Reference Series CDT-3650-C II 6.5" In-Ceiling Speaker

Product Overview

1” Aluminum Tweeter

6.5" pivoting IMG woofer

Horn-loaded technology increases acoustic output while significantly reducing distortion

Controlled Dispersion Technology® directs high and midbass frequencies to the main listening area

Treble attenuation switch

Elegant new, low-profile SlimTrim™ magnetic grille

Updated with The Latest Technology

The Klipsch® CDT-3650-C II maintains the core technology use of a rigid 1” Aluminum compression driver (tweeter) mated to an exclusive Tractrix® Horn combined with a 6.5” IMG woofer in a 2-way design. Now with a new low-profile, more elegant grille and refinements to both high frequency and low frequency reproduction, it continues as a high-performance choice for everything from 2-channel music playback to full, large room surround sound use.

The Update for Your Eyes: The New SlimTrim™ Grille

With an all new grille, the visible frame size is reduced by 90% and grill depth is reduced by 80% over the previous design, for a more edge-to-edge consistent look that blends in with the wall more attractively. The new aluminum, paintable, magnetic grille attaches tightly and securely with ease to virtually eliminate resonant distortion.

Klipsch® Exclusive Controlled Dispersion Technology® (CDT)

Klipsch® horn-loaded technology increases acoustic output while significantly reducing distortion. Proprietary Controlled Dispersion Technology allows for both the symmetrical, 100° Tractrix Horn compression driver (tweeter) and woofer to be independently aimed toward the main listening area. The tweeter swivels while the woofer rotates 360° and pivots 15° in any direction. The precisely controlled dispersion of the horn-loaded tweeter assures that high frequencies are more effectively directed towards the listening area than typical amiable, broad dispersion, standard dome tweeters. This, combined with the woofer’s ability to also direct more narrowly dispersed midbass frequencies, yields overall sound with more lifelike impact, greater detail and better vocal clarity.

Aluminum Diaphragm Compression Driver (Tweeter) with Linear Travel Suspension (LTS)

Combined with the Tractrix Horn, the one-inch stiff, yet lightweight, metallic diaphragm works in conjunction with a precise phasing plug at the horn throat to create a very efficient driver with excellent transient response and lack of distortion. The new Linear Travel Suspension assures the most precise diaphragm excursion, increasing high-frequency detail and smoothness.

Machine-Spun IMG Woofer

The solid Injection Molded Graphite woofer cone has been strengthened for even more accurate bass reproduction.

Treble Attentuation Switch

For reduction of high frequency output in challenging install applications such as overly reflective rooms, allowing for a better frequency balance.

Sure-Grip Mounting Dogs

Provide even pressure against drywall for long-term installation reliability.

Compatible with The Klipsch IK-650-C Install Kit

For increased mounting flexibility and pre-install marking during new construction.

Compatible with the Klipsch ME-650-C Fire-Rated Speaker Enclosure

For meeting building codes and/or reduction of transferred sound between rooms.
