Product Dimensions 1.4"h x 4.1"w x 4.1"d

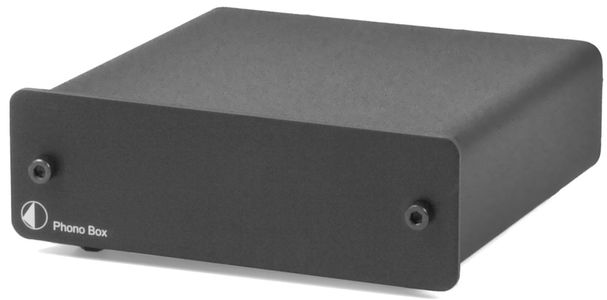

The Pro-Ject Phono Box DC is a flexible phono stage for interfacing a turntable to a preamplifier, integrated amplifier or receiver that provides only line-level inputs. Low noise, lose distortion and a flat RIAA equalization curve with 60dB of gain (MC), 40 dB gain (MM) deliver high fidelity performance for both moving magnet and moving coil cartridges. The Phono Box DC is capable of a maximum output of 9.5V RMS / 1 khz.Read More
Low noise
Lose distortion
Flat RIAA equalization curve
General Specs | |
| Product Weight (lbs.) | 1.3 |
| Depth (in.) | 4.1 |
| Width (in.) | 4.1 |
| Height (in.) | 1.4 |
| Analog Audio(RCA) Input | 1 |
| Color | Black |
| Smart Compatible | No |
| Wifi Capable | No |
| Bluetooth Capable | No |
| Color Finish Name | Black |
| Width (cm) | 10.41 |
| Height (cm.) | 3.56 |
| Depth (cm.) | 10.41 |
| Product Weight (kg) | .59 |
Additional Information | |
| Input Impedance MM | 47k ohms / 120pF |
| Input Impedance MC | 100 ohms / 120pF |
| Gain MM | 40dB |
| Output Voltage MM | 300mV / 1 kHz at 3mV |
| Gain MC | 60dB |
| Output Voltage MC | 200 mV / 1 kHz or 0.3 mV |
| Noise MM | 86 dB (94 dB - A weighted) |
| Noise MC | 68 dB (75 dB - A weighted) |
| THD | MM 0.01% / MC 0.05% |
| Max Output | 9.5 V |
| RIAA EQ Curve Accuracy | 20 Hz - 20 kHz / max 0.5 dB |
| Power Consumption | 18 V / 80 mA DC |
| Power Supply | 18 V / 500 mA DC |
| Dimensions (WHD) | 4.1 x 1.4 x 4.1 in., 103 x 36 x 103 mm |
| Weight | 1.3 lbs., 570 g |
| Finish | Black or silver |
